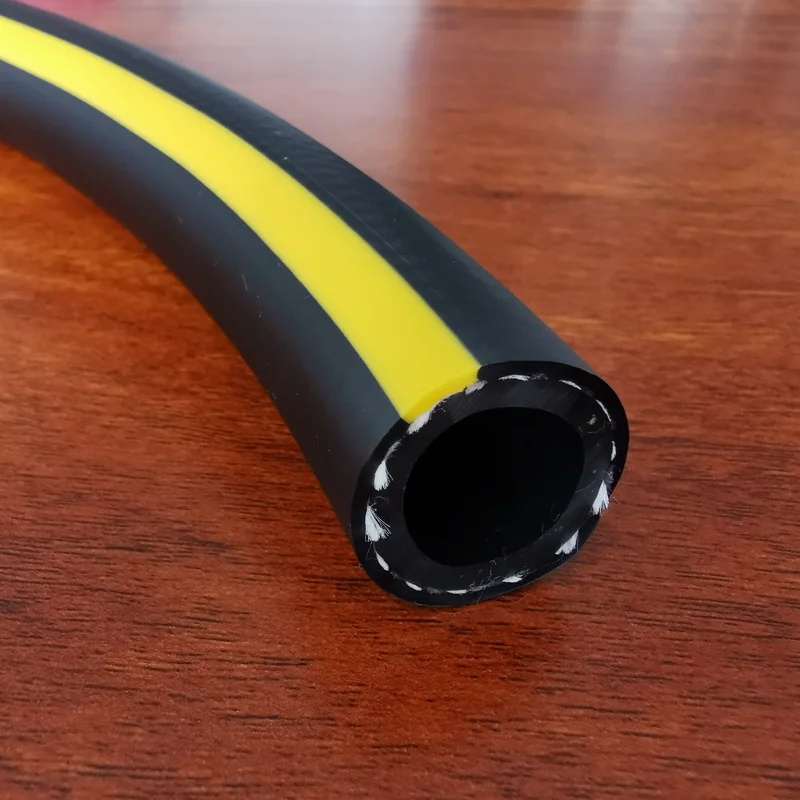

PVC Mix Rubber Fiber Reinforced Hose
PVC Fiber Reinforced Hoses
PVC and rubber composite hose with fiber reinforcement, designed for pneumatic devices, gas flushing equipment, compressors and engine components. Excellent pressure and oil resistance.
| Working Temperature | -10°C ~ 80°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length, color available |
Applications
- Pneumatic devices and gas flushing equipment
- Compressors and engine components
- Mechanical maintenance
- Civil engineering equipment
Characteristics
- Pressure resistant and oil resistant
- Lightweight and wear resistant
- Aging resistant and bend resistant
- High performance composite material
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KR-6×2.5 | 1/4 | 6 | 11 | 100 | 2.5 | 9 |
| KR-8×2.75 | 5/16 | 8 | 13.5 | 100 | 2.5 | 13 |
| KR-9×3 | 3/8 | 9 | 15 | 100 | 2.5 | 15 |
| KR-10×3 | 3/8 | 10 | 16 | 100 | 2.5 | 16.5 |
| KR-12×3 | 1/2 | 12 | 18 | 50 | 2 | 19 |
| KR-15×3.5 | 9/16 | 15 | 22 | 50 | 2 | 27 |
| KR-19×3.5 | 3/4 | 19 | 26 | 50 | 1.7 | 17 |
| KR-25×4 | 1 | 25 | 33 | 50 | 1.2 | 25 |
| KR-32×5 | 1-1/4 | 32 | 42 | 50 | 1.5 | 40 |
