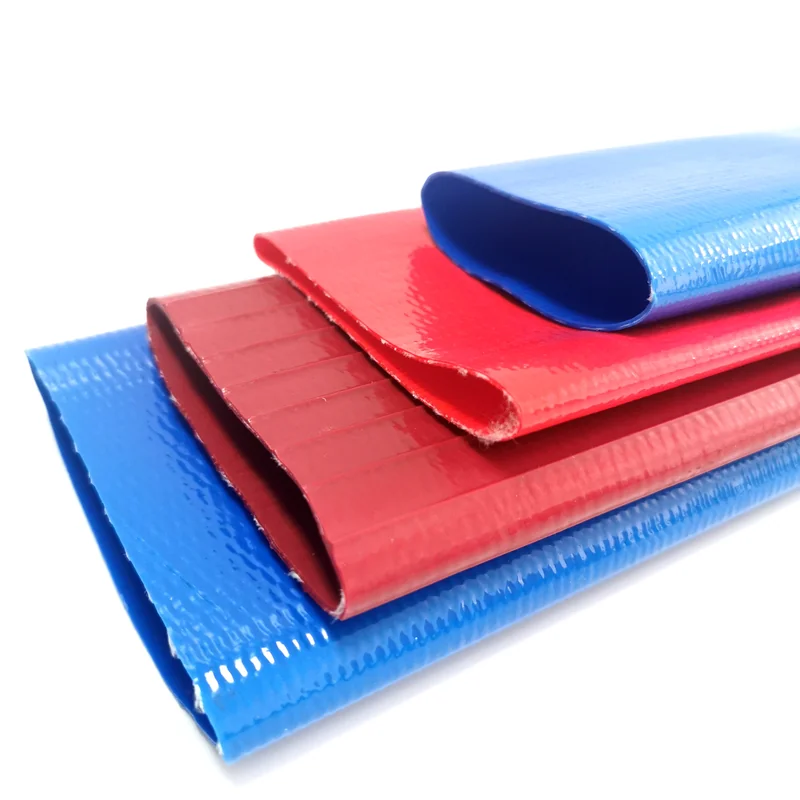

PVC Light Duty Layflat Hose (4 BAR)
PVC Layflat Hoses
Light-duty layflat hose for agricultural irrigation and industrial liquid transfer. One-time extrusion molding with thin wall, light weight and high pressure. REACH compliant options available.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length, color available |
Applications
- Agricultural and forestry irrigation
- Industrial liquid transfer
- Sprinkler irrigation systems
- Temporary water supply
Characteristics
- Thin wall, light weight, high pressure
- Acid and alkali resistant
- Anti-aging and UV resistant
- REACH compliant options available
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KRSD-25 | 1 | 25 | 1.3 | 100 | 4 | 150 |
| KRSD-32 | 1-1/4 | 32 | 1.2 | 100 | 4 | 170 |
| KRSD-38 | 1-1/2 | 38 | 1.2 | 100 | 4 | 190 |
| KRSD-50 | 2 | 51 | 1 | 100 | 4 | 220 |
| KRSD-64 | 2-1/2 | 64 | 1.1 | 100 | 4 | 300 |
| KRSD-75 | 3 | 76 | 1.1 | 100 | 4 | 360 |
| KRSD-102 | 4 | 103 | 1.25 | 100 | 4 | 550 |
| KRSD-127 | 5 | 127 | 1.35 | 100 | 3.5 | 750 |
| KRSD-150 | 6 | 152 | 1.35 | 100 | 3 | 900 |
| KRSD-200 | 8 | 203 | 2 | 100 | 3 | 1600 |
| KRSD-250 | 10 | 255 | 2.4 | 100 | 2.5 | 2600 |
| KRSD-300 | 12 | 305 | 2.35 | 100 | 2 | 3000 |
| KRSD-350 | 14 | 358 | 3 | 50 | 2 | 5000 |
| KRSD-400 | 16 | 408 | 3 | 50 | 2 | 6000 |
