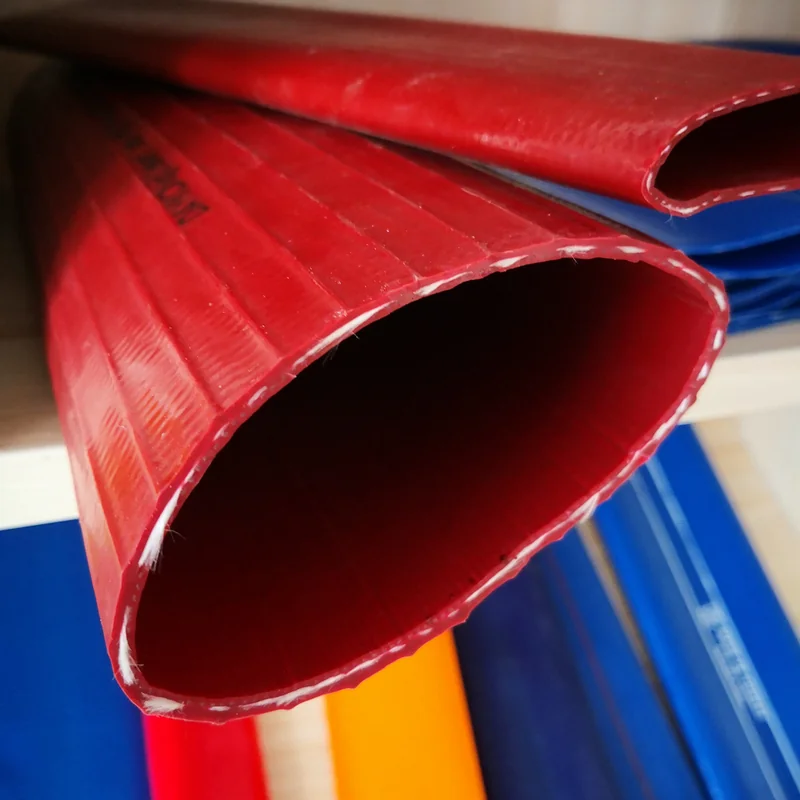

PVC Heavy Duty Layflat Hose (8/10 BAR)
PVC Layflat Hoses
Heavy-duty layflat hose with 8/10 BAR pressure rating, woven with specially processed high-strength polyester industrial yarn. Designed for mud discharge in agriculture, construction, mining and marine industries.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 200 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length available |
Applications
- Agriculture, construction and mining mud discharge
- Marine industry applications
- Heavy-duty water delivery
- High-pressure drainage
Characteristics
- 8/10 BAR pressure rating
- High-strength polyester industrial yarn
- UV resistant and sun-proof
- Special woven construction for heavy duty
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KRSD-20 | 13/16 | 20 | 1.55 | 50 | 10 | 140 |
| KRSD-25 | 1 | 25 | 1.8 | 50 | 10 | 200 |
| KRSD-32 | 1-1/4 | 32 | 1.5 | 50 | 10 | 210 |
| KRSD-38 | 1-1/2 | 38 | 1.7 | 50 | 10 | 290 |
| KRSD-40 | 1-1/2 | 40 | 1.9 | 50 | 10 | 300 |
| KRSD-45 | 1-3/4 | 45 | 2 | 50 | 10 | 350 |
| KRSD-50 | 2 | 51 | 1.55 | 50 | 8 | 350 |
| KRSD-50 | 2 | 51 | 1.8 | 50 | 10 | 420 |
| KRSD-64 | 2-1/2 | 64 | 1.9 | 50 | 10 | 700 |
| KRSD-75 | 3 | 76 | 2 | 50 | 8 | 660 |
| KRSD-75 | 3 | 76 | 2.55 | 50 | 10 | 850 |
| KRSD-102 | 4 | 102 | 2.25 | 50 | 8 | 1000 |
| KRSD-102 | 4 | 102 | 2.7 | 50 | 10 | 1200 |
| KRSD-107 | 5 | 127 | 2.8 | 50 | 8 | 1800 |
| KRSD-150 | 6 | 152 | 3 | 50 | 8 | 2000 |
| KRSD-200 | 8 | 203 | 3.2 | 50 | 6 | 2800 |
