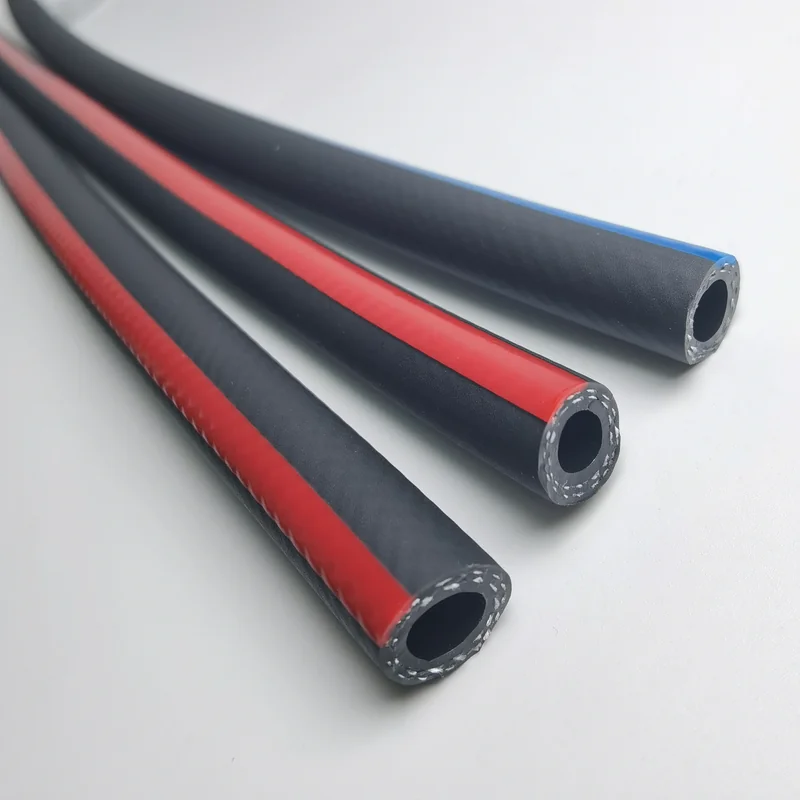

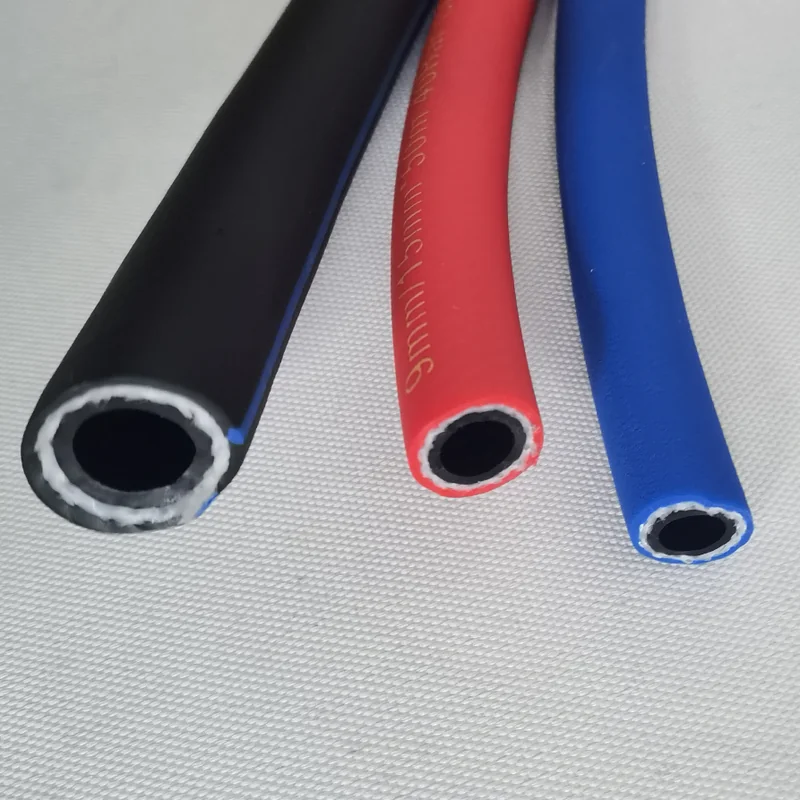

PVC Hi-Pressure Double Reinforced Spray Hose
PVC Fiber Reinforced Hoses
High-pressure spray hose with double-layer high-strength fiber reinforcement, ideal for orchard and agricultural pesticide spraying. Lightweight, wear resistant and corrosion resistant.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length available |
Applications
- Orchard and agricultural pesticide spraying
- Pest control applications
- High-pressure spraying equipment
- Farm and field irrigation
Characteristics
- Lightweight, wear resistant and weather resistant
- Pressure resistant construction
- Corrosion and aging resistant
- Easy to operate
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KR-II-6×2.5 | 1/4 | 6 | 11 | 100 | 4 | 9 |
| KR-III-8×2.75 | 5/16 | 8 | 13.5 | 100 | 4 | 13 |
| KR-III-9×3 | 3/8 | 9 | 15 | 100 | 3 | 15 |
| KR-II-10×3 | 13/32 | 10 | 16 | 100 | 3 | 16.5 |
| KR-III-12×3 | 1/2 | 12 | 18 | 100 | 3 | 19 |
| KR-I-15×3.5 | 9/16 | 15 | 22 | 100 | 2 | 27 |
| KR-II-19×4.5 | 3/4 | 19 | 28 | 50 | 2 | 22 |
| KR-III-25×4.5 | 1 | 25 | 34 | 40 | 2 | 23 |
