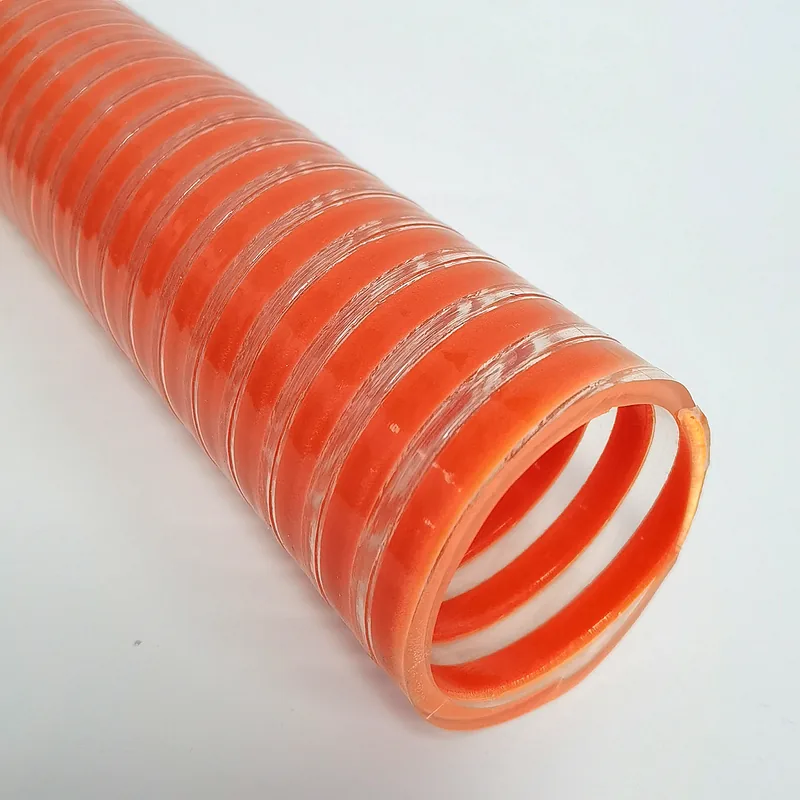

PVC Helix Suction Hose
PVC Helix Suction Hoses
Heavy-duty hose with rigid PVC helix reinforcement, ideal substitute for rubber and metal pipes. Suitable for industrial, agricultural and civil engineering conveying of powder, grain, water and oil.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length, color available |
Applications
- Industrial, agricultural and civil engineering
- Powder, grain, water and oil conveying
- Irrigation and drainage
- Ideal replacement for rubber and metal pipes
Characteristics
- Lightweight with excellent elasticity
- Excellent negative pressure resistance
- Good adaptability to various applications
- Rigid helix for structural integrity
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KRSJ-13×2 | 1/2 | 13 | 17 | 50 | -0.1-0.2 | 6.5 |
| KRSJ-16×3 | 5/8 | 16 | 22 | 50 | -0.1-0.4 | 12 |
| KRSJ-19×3 | 3/4 | 19 | 25 | 50 | -0.1-0.4 | 14 |
| KRSJ-25×4 | 1 | 25 | 33 | 50 | -0.1-0.5 | 24 |
| KRSJ-28×3 | 1-1/8 | 28 | 34 | 40 | -0.1-0.3 | 16 |
| KRSJ-32×4 | 1-1/5 | 32 | 40 | 40 | -0.1-0.6 | 24 |
| KRSJ-38×4 | 1-1/2 | 38 | 46 | 40 | -0.1-0.5 | 28.4 |
| KRSJ-50×5 | 2 | 50 | 60 | 30 | -0.1-0.6 | 34.5 |
| KRSJ-64×5 | 2-1/2 | 64 | 74 | 30 | -0.1-0.5 | 43.5 |
| KRSJ-75×5 | 3 | 75 | 85 | 30 | -0.1-0.4 | 51 |
| KRSJ-89×6 | 3-5/9 | 89 | 101 | 30 | -0.1-0.4 | 70 |
| KRSJ-102×6 | 4 | 102 | 114 | 30 | -0.1-0.4 | 81 |
| KRSJ-125×7 | 5 | 125 | 139 | 20 | -0.1-0.3 | 77 |
| KRSJ-152×8 | 6 | 152 | 168 | 20 | -0.1-0.3 | 105.6 |
| KRSJ-200×10 | 8 | 200 | 220 | 20 | -0.1-0.2 | 178 |
