PVC Fiber and Steel Wire Reinforced Hose
PVC Fiber and Steel Wire Reinforced Hoses

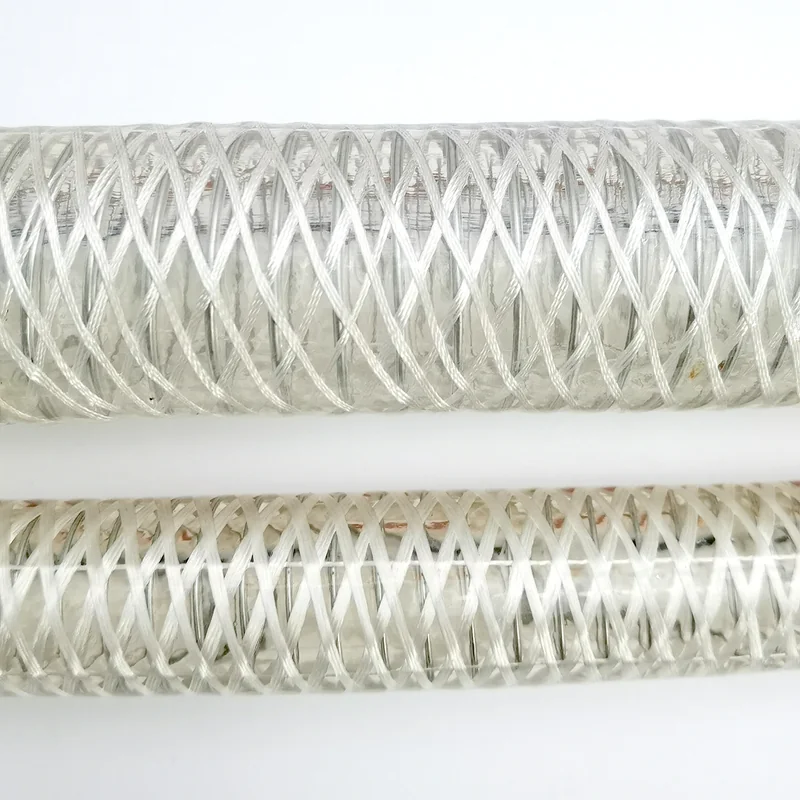

Composite hose with embedded steel wire skeleton and premium fiber reinforcement. Combines positive and negative pressure resistance, maintaining original shape during suction and discharge.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length available |
Applications
- High-pressure liquid and gas delivery
- Granular and powder material suction
- Industrial fluid conveying
- Vacuum and pressure applications
Characteristics
- Embedded steel wire skeleton with premium fiber layer
- Combines positive and negative pressure resistance
- Maintains shape during suction and discharge
- High-pressure delivery capability
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KR-15×3 | 9/16 | 15 | 22 | 100 | -0.1-1.0 | 31 |
| KR-19×3.5 | 3/4 | 19 | 26 | 50 | -0.1-1.0 | 19 |
| KR-25×3.5 | 1 | 25 | 32 | 50 | -0.1-0.7 | 24 |
| KR-32×4 | 1-1/4 | 32 | 40 | 40 | -0.1-0.6 | 28 |
| KR-38×4.5 | 1-1/2 | 38 | 47 | 40 | -0.1-0.6 | 37.2 |
| KR-45×5 | 1-3/4 | 45 | 55 | 40 | -0.1-0.5 | 48.8 |
| KR-50×5.5 | 2 | 50 | 61 | 40 | -0.1-0.5 | 60 |
| KR-60×7 | 2-3/8 | 60 | 74 | 30 | -0.1-0.5 | 67 |
| KR-64×7 | 2-1/2 | 64 | 78 | 20 | -0.1-0.5 | 50 |
| KR-75×7.5 | 3 | 75 | 90 | 20 | -0.1-0.4 | 60 |
| KR-90×8 | 3-1/2 | 90 | 106 | 20 | -0.1-0.3 | 74 |
| KR-100×8 | 4 | 100 | 116 | 20 | -0.1-0.3 | 82 |
