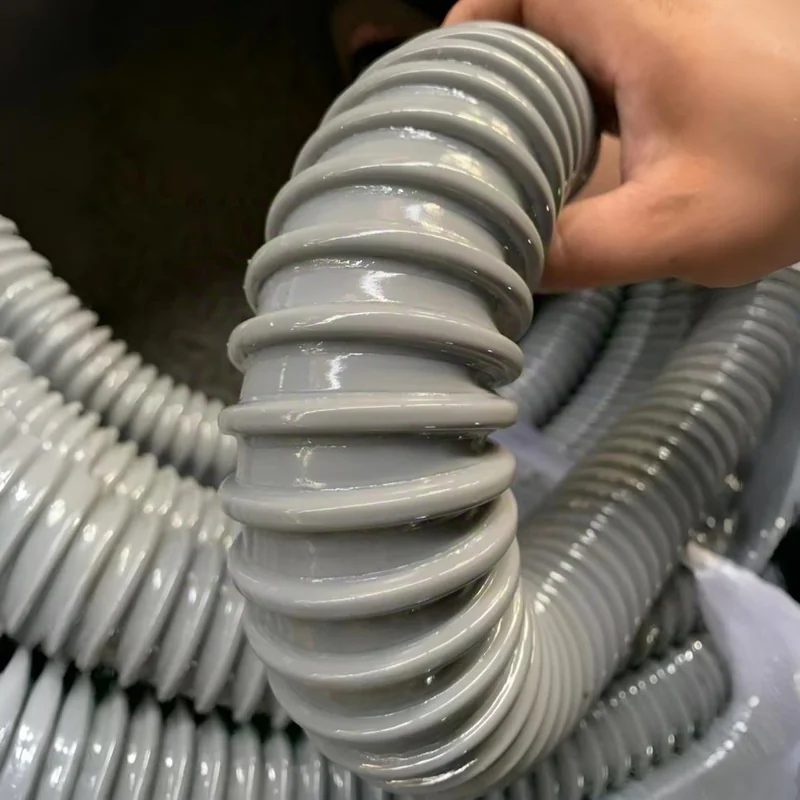

PVC Duct Air Hose
PVC Helix Suction Hoses
Ventilation hose with plastic helix reinforcement and smooth inner wall. Designed for suction of gas, smoke, dust, sawdust and fine particles, as well as cable protection and agricultural irrigation.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |
| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length available |
Applications
- Gas, smoke, dust and sawdust extraction
- Fine particle suction
- Cable protection
- Agricultural irrigation
Characteristics
- Plastic helix reinforcement with smooth inner wall
- Soft, tear resistant and twist resistant
- Resistant to most chemicals
- Lightweight and flexible
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KRFG-25 | 1 | 25 | 0.75 | 50 | 0.175 | |
| KRFG-30 | 1-1/8 | 30 | 0.75 | 50 | 0.21 | |
| KRFG-35 | 1-1/5 | 35 | 0.75 | 50 | 0.26 | |
| KRFG-40 | 1-3/5 | 40 | 0.75 | 50 | 0.3 | |
| KRFG-45 | 1-4/5 | 45 | 0.75 | 50 | 0.38 | |
| KRFG-50 | 2 | 50 | 0.75 | 50 | 0.6 | |
| KRFG-60 | 2-2/5 | 60 | 0.75 | 30 | 0.7 | |
| KRFG-70 | 2-4/5 | 70 | 1 | 30 | 0.8 | |
| KRFG-80 | 3-1/5 | 80 | 1 | 30 | 1 | |
| KRFG-90 | 3-3/5 | 90 | 1 | 30 | 1.1 | |
| KRFG-100 | 4 | 102 | 1.2 | 30 | 1.14 | |
| KRFG-110 | 4-2/5 | 110 | 1.2 | 30 | 1.5 | |
| KRFG-125 | 5 | 125 | 1.6 | 30 | 2 | |
| KRFG-140 | 5-3/6 | 140 | 1.6 | 30 | 2.1 | |
| KRFG-150 | 6 | 150 | 1.6 | 30 | 2.4 | |
| KRFG-160 | 6-2/5 | 160 | 1.6 | 30 | 2.67 | |
| KRFG-200 | 8 | 200 | 1.8 | 20 | 3.1 | |
| KRFG-250 | 10 | 250 | 1.8 | 10 | 4.1 |
