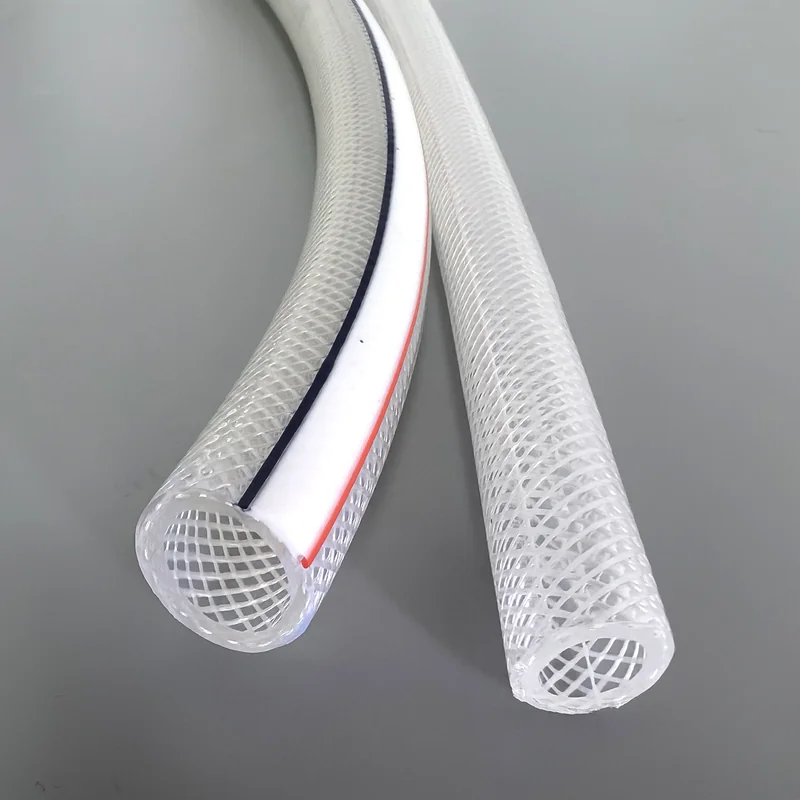

PVC Clear Fiber Reinforced Hose
PVC Fiber Reinforced Hoses
Transparent PVC hose reinforced with high-tensile polyester yarn, offering excellent flexibility, clarity and pressure resistance. Ideal for water, oil and gas conveyance in factory, farm, ship, building and household applications.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 500 rolls |
| Lead Time | 15-25 days |

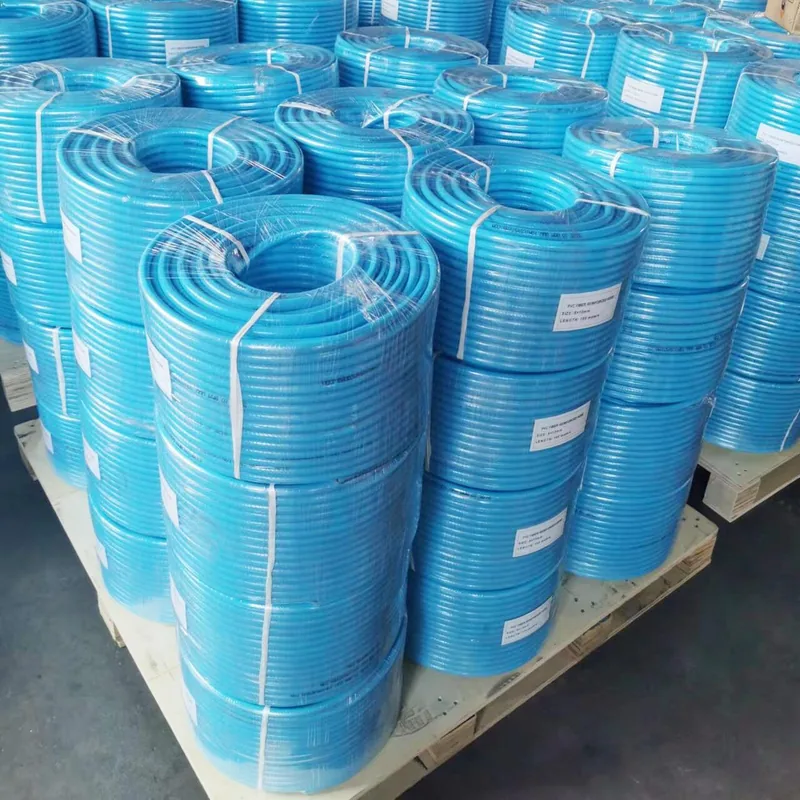

| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Color, size, length, logo printing available |
Applications
- Conveying water, oil, gas under normal working condition
- Factory, farm, ship, building and family use
- Agricultural irrigation and drainage
- Industrial water and air delivery
Characteristics
- Flexible, transparent and durable
- Anti-erosion, adaptable to high pressure
- Colorful symbol lines on surface for better appearance
- Smooth inner bore for low flow resistance
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) | Pack Size (mm) |
|---|---|---|---|---|---|---|---|
| KR-5X2 | 13/64" | 5 | 9 | 170 | 1.2 | 3.6 | 420X130 |
| KR-6X2 | 6 | 10 | 148 | 1.2 | 3.6 | 430X150 | |
| KR-8X2 | 5/16" | 8 | 13 | 110 | 1.2 | 4.5 | 440X160 |
