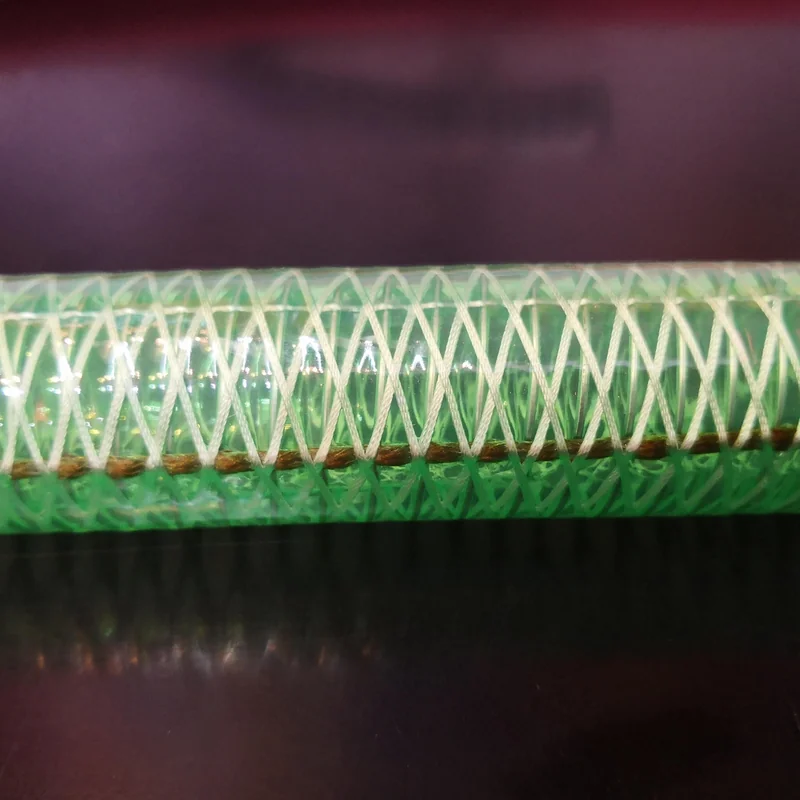

PVC Anti-Static Fiber and Steel Wire Hose
PVC Fiber and Steel Wire Reinforced Hoses
Anti-static composite hose combining copper wire static protection with steel wire and fiber reinforcement. Ideal for buildings, factories, coal mines and oil depots where static electricity is a concern.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 300 rolls |
| Lead Time | 20-30 days |

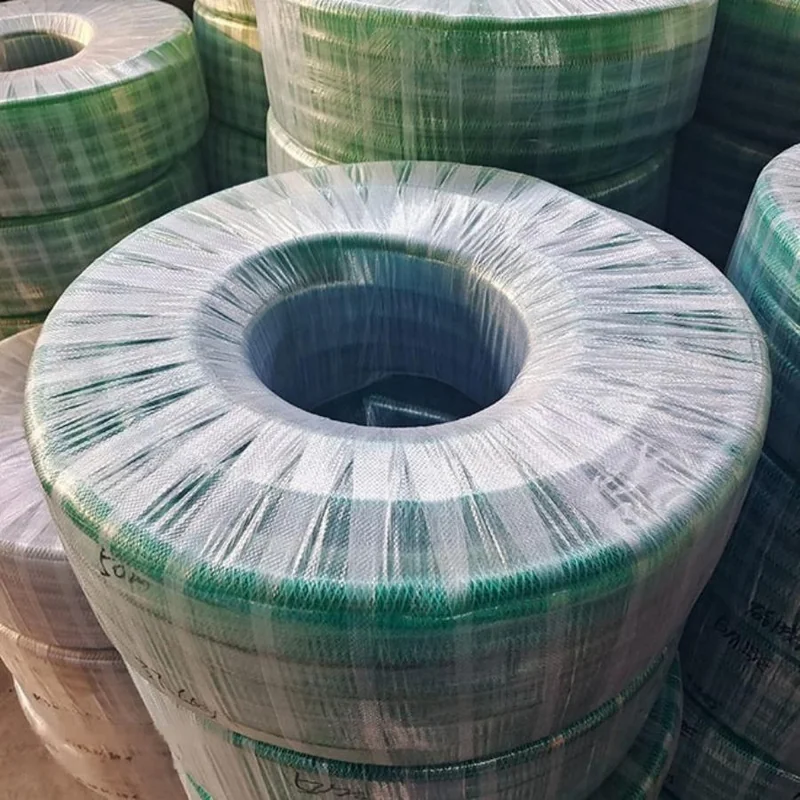

| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Size, length available |
Applications
- Buildings, factories and coal mines
- Oil depots and fuel handling
- Static-sensitive environments
- Volatile and flammable material conveying
Characteristics
- Copper wire prevents static blockage and electric shock
- Steel wire and fiber composite reinforcement
- Positive and negative pressure resistance
- Maintains shape under vacuum
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KR-15×3 | 9/16 | 15 | 22 | 100 | -0.1-1.0 | 31 |
| KR-19×3.5 | 3/4 | 19 | 26 | 50 | -0.1-1.0 | 19 |
| KR-25×3.5 | 1 | 25 | 32 | 50 | -0.1-0.7 | 24 |
| KR-32×4 | 1-1/4 | 32 | 40 | 40 | -0.1-0.6 | 28 |
| KR-38×4.5 | 1-1/2 | 38 | 47 | 40 | -0.1-0.6 | 37.2 |
| KR-45×5 | 1-3/4 | 45 | 55 | 40 | -0.1-0.5 | 48.8 |
| KR-50×5.5 | 2 | 50 | 61 | 40 | -0.1-0.5 | 60 |
| KR-60×7 | 2-3/8 | 60 | 74 | 30 | -0.1-0.5 | 67 |
| KR-64×7 | 2-1/2 | 64 | 78 | 20 | -0.1-0.5 | 50 |
| KR-75×7.5 | 3 | 75 | 90 | 20 | -0.1-0.4 | 60 |
| KR-90×8 | 3-1/2 | 90 | 106 | 20 | -0.1-0.3 | 74 |
| KR-100×8 | 4 | 100 | 116 | 20 | -0.1-0.3 | 82 |
