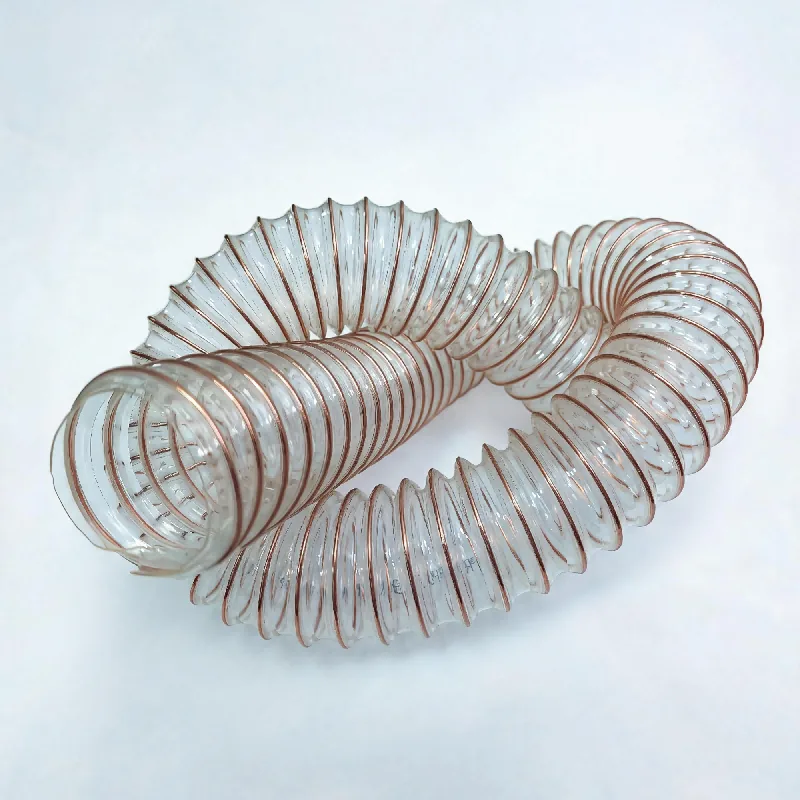

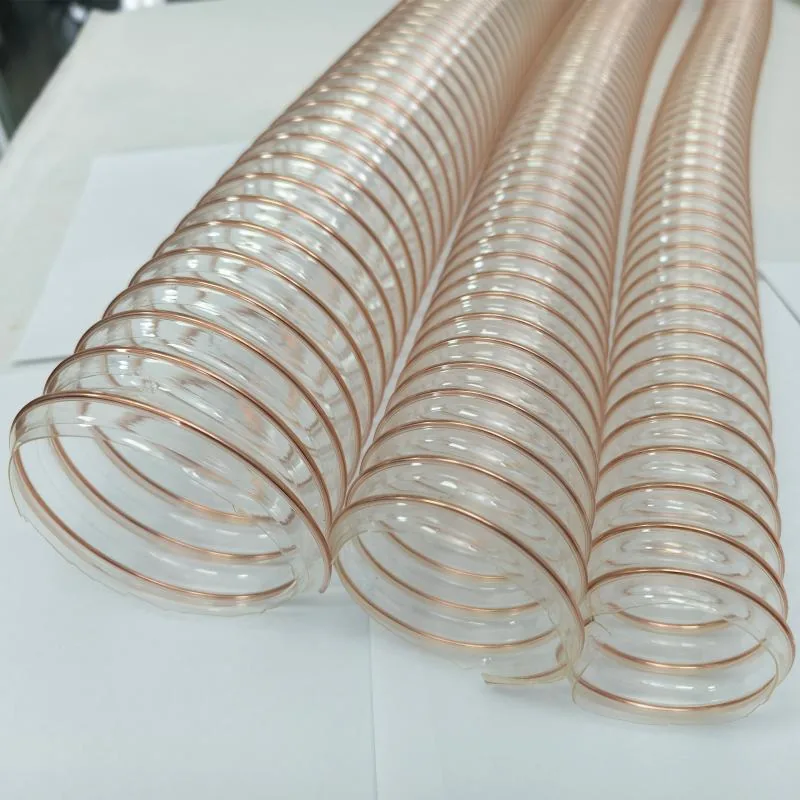

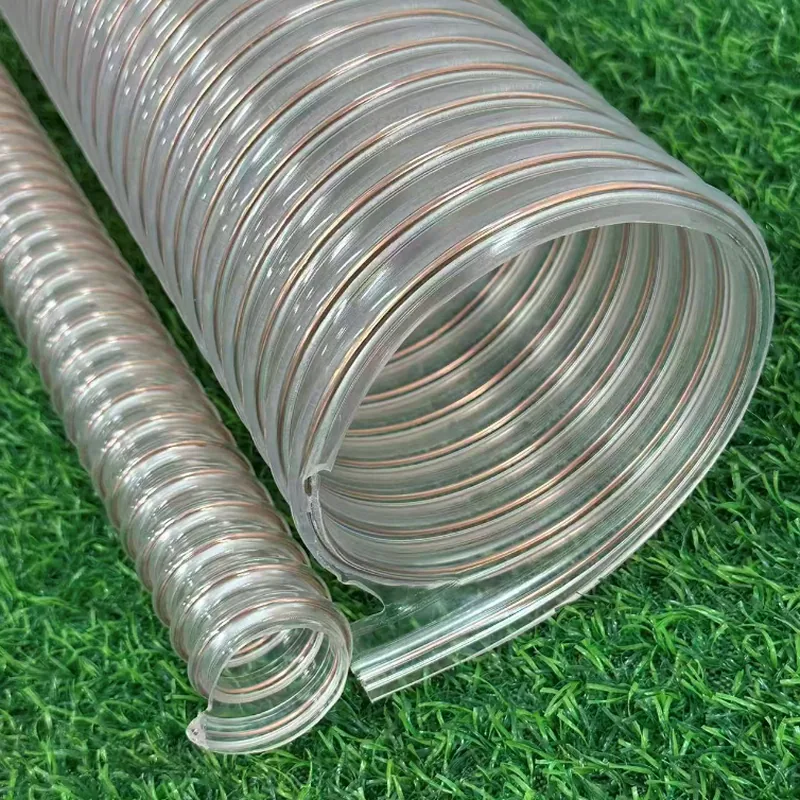

PU Flexible Duct Hose
PU Flexible Hose Series
Lightweight polyurethane duct hose with excellent flexibility and abrasion resistance, ideal for ventilation, dust collection and air movement applications.
| Working Temperature | -20°C ~ 90°C |
| MOQ | 200 pieces |
| Lead Time | 15-25 days |
| Packaging | Plastic film wrapped, carton or pallet |
| Customization | Size, length, color, logo printing available |
Applications
- Ventilation and air movement
- Dust collection systems
- Fume extraction
- Material handling and conveying
Characteristics
- Extremely lightweight and flexible
- Excellent abrasion resistance
- Good chemical resistance
- Compressible for easy storage
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) | Pack Size (mm) |
|---|---|---|---|---|---|---|---|
| KR-PU-50 | 2" | 50 | 56 | 10/20 | 0.3 | 3.0 | 450X350 |
| KR-PU-76 | 3" | 76 | 82 | 10/20 | 0.25 | 5.0 | 500X380 |
| KR-PU-102 | 4" | 102 | 108 | 10/20 | 0.2 | 7.0 | 550X400 |
